Heavy Duty High Pressure Hydraulic Oil Cooler

Product Categories
Changzhou ADV Heat Exchanger Co., Ltd
Contact Now

Heavy Duty High Pressure Hydraulic Oil Cooler

  • 1
  • 2

Brand Name : ADV

Model Number : ADV - HD -02

Certification : ISO9001:2008

Place of Origin : Changzhou China

MOQ : 1 Unit

Supply Ability : 1~50 + Units + 25 Working Days

Delivery Time : 1~25 Working Days

Packaging Details : Wooden Packing

Material : AL3003

Technic : Vacuum Brazing

Max Size : 2.4 Meters Length

Max Pressure : 3.5 Mpa

Test : Leak Test & Performance Test & Pressure Pulse Test & Vibration Test

Usage : General hydraulic system, lubricationg system, gearbox

Warranty : 12 Month

Contact Now



Heavy Duty High Pressure Hydraulic Oil Cooler ​

  • High-performance cooler net for a maximum static operating pressure of 26 bar in aluminium (Al)

  • Suitable for hydraulic oil, gear lubricant oil, lubricating oil, motor oil and water-glycine

  • Fan drive in 12 V, 24 V, 230 V/400 V and hydraulic drive

  • Easy maintenance and good options for cleaning

  • Low sound pressure level

  • CE certification

  • OAC with KTL Coating

  • The special dipping paint allows to protect those areas of the cooler which are difficult to access

  • The coolers are supplied with a special electric motor of protection class IP56

  • The extra protection coating does not have any effect on the efficiency of the cooler"

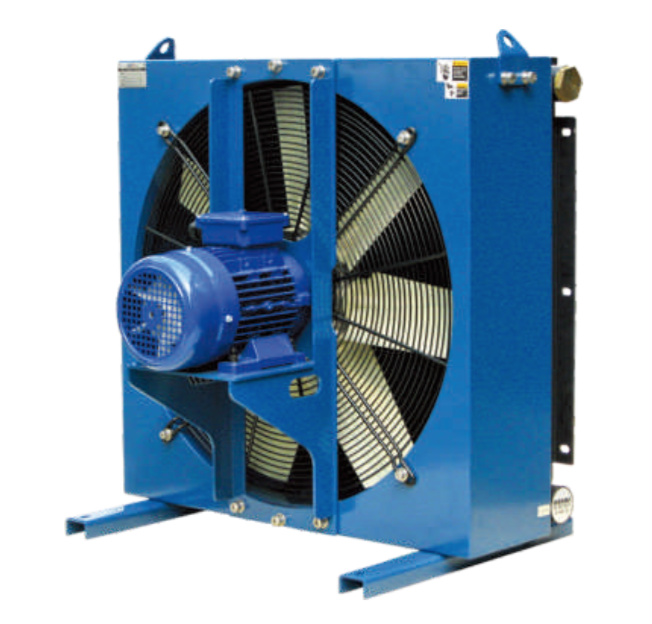

Heavy Duty High Pressure Hydraulic Oil Cooler

Heavy Duty High Pressure Hydraulic Oil Cooler

   ​

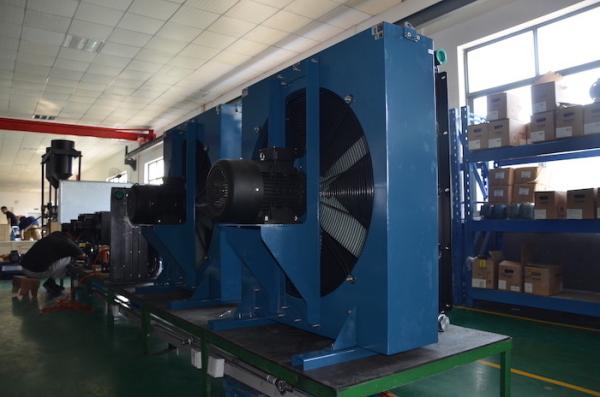

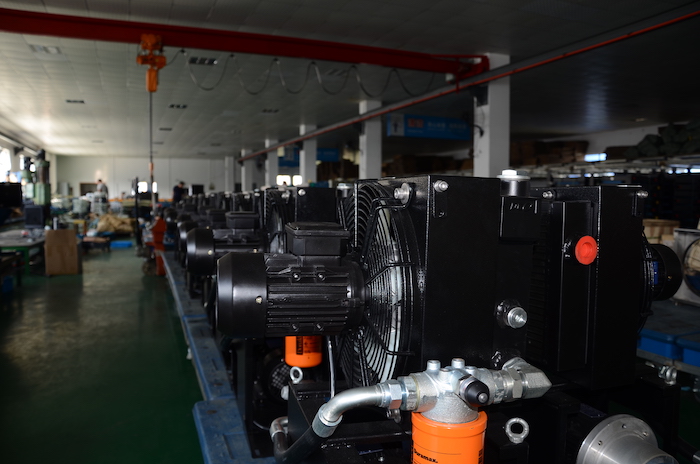

  Manufacturing





Heavy Duty High Pressure Hydraulic Oil Cooler





LAB & TEST

  •  Leak Test of Every Unit Before Shipment
  •  Performance Test
  •  Pulse Test
  •  Viberation Test
  •  Salty Spay Test ​





ADV Services
  • 3D model drawing available
  • Prototype testing and confirmation
  • Steel frame support, Front to Back type design and manufacturing
  • Easy mounting and maintain, Good anti-vibration
  • Stable Performance & Low Pressure Drop
  • Compact Design & Light Weight
  • Motor & Fan is Optional
  • 12 Month Global Warranty
  • OEM Production is Offered

Purchasing Guide



You just need to tell us your specific requirements and environmental parameters so that we can make professional quotations accordingly.

Please advise:



Oil parameter Fluid
Flow
Inlet temperature (℃)
Cooling power (kw)
Max. allowable pressure drop
Max. work pressure (MPa)
Air parameter Flow
Inlet temperature (℃)
Cooling power (kw)
Max. allowable pressure drop
Max. work pressure (MPa)
Cool air parameter Flow & Pressure curve
Inlet temperature (℃)
Air trace
Mounting Max overall dimension
Location of connections
Requirement of structure
Working condition



Be free to contact us if you need any further information, thank you!
