High Efficiency Explosion-proof Hydraulic cooler for Marine Equipment Wind Power Generation and mining

Product Categories
Changzhou ADV Heat Exchanger Co., Ltd
Contact Now

High Efficiency Explosion-proof Hydraulic cooler for Marine Equipment Wind Power Generation and mining

  • 1
  • 2

Brand Name : ADV

Model Number : ADV - HD -02

Certification : ISO9001:2008

Place of Origin : Changzhou China

MOQ : 1 Unit

Supply Ability : 1~50 + Units + 25 Working Days

Delivery Time : 1~25 Working Days

Packaging Details : Wooden Packing

Material : AL3003

Technic : Vacuum Brazing

Max Size : 2.4 Meters Length

Max Pressure : 3.5 Mpa

Test : Leak Test & Performance Test & Pressure Pulse Test & Vibration Test

Usage : Marine Equipment Wind Power Generation and mining

Warranty : 12 Month

Contact Now

 High Efficiency Explosion-proof Hydraulic cooler

for Marine Equipment Wind Power Generation and mining​



High Efficiency Explosion-proof Hydraulic cooler for Marine Equipment Wind Power Generation and mining

High Efficiency Explosion-proof Hydraulic cooler for Marine Equipment Wind Power Generation and mining



  Features:

  •   Can be worked in outdoor under hard and heavy situation
  •   Protection class IP55
  •   Explosion-proof standard
  •   Strong & high quality mechanical work done by CNC machine
  •   High antiseptic treatment with 1440h salt spay test report



  Technical Data:

  •   Max static pressure: 16Bar (Higher pressure can be customized)
  •   Inlet Temp: 70 ℃ (bellow 130℃ can be customized)

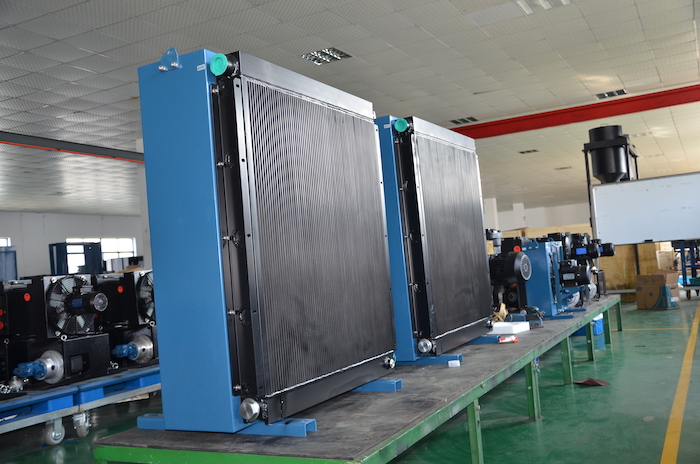

  Manufacturing



High Efficiency Explosion-proof Hydraulic cooler for Marine Equipment Wind Power Generation and mining









LAB & TEST

  •  Leak Test of Every Unit Before Shipment
  •  Performance Test
  •  Pulse Test
  •  Viberation Test
  •  Salty Spay Test ​

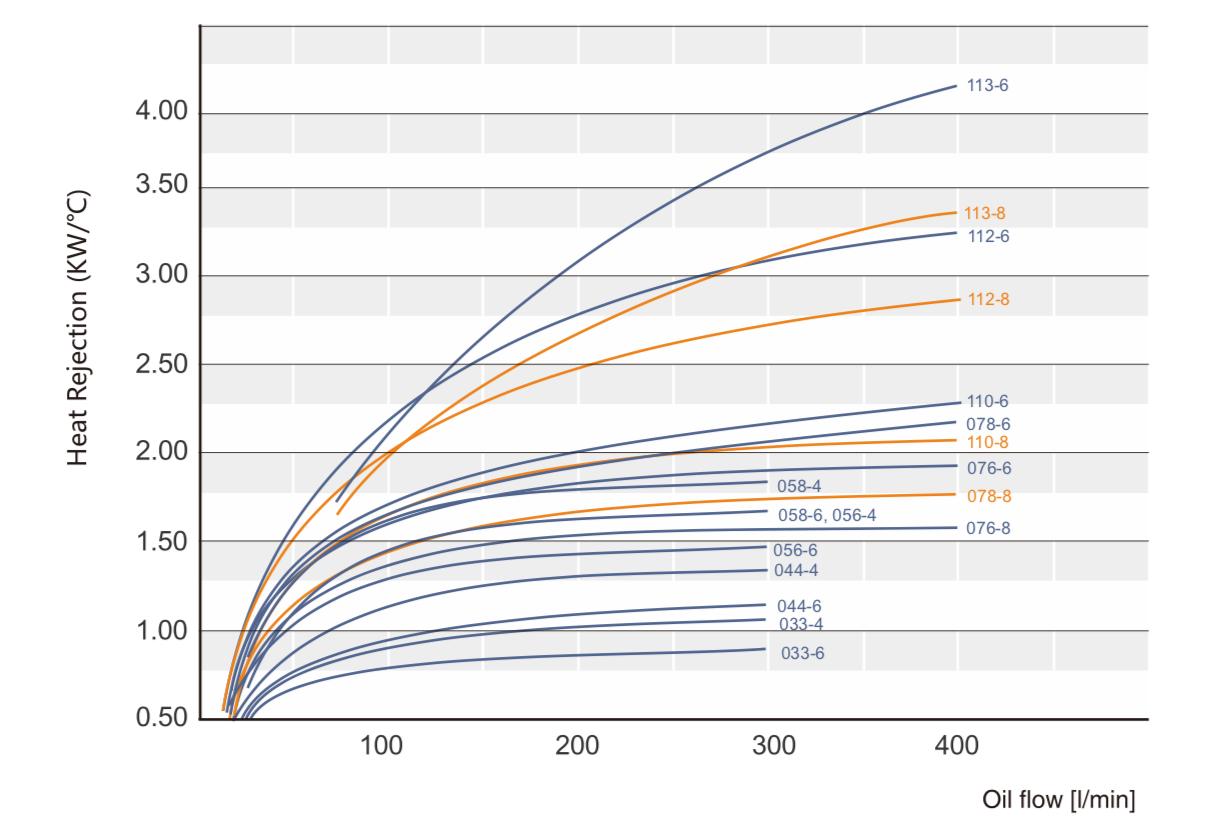

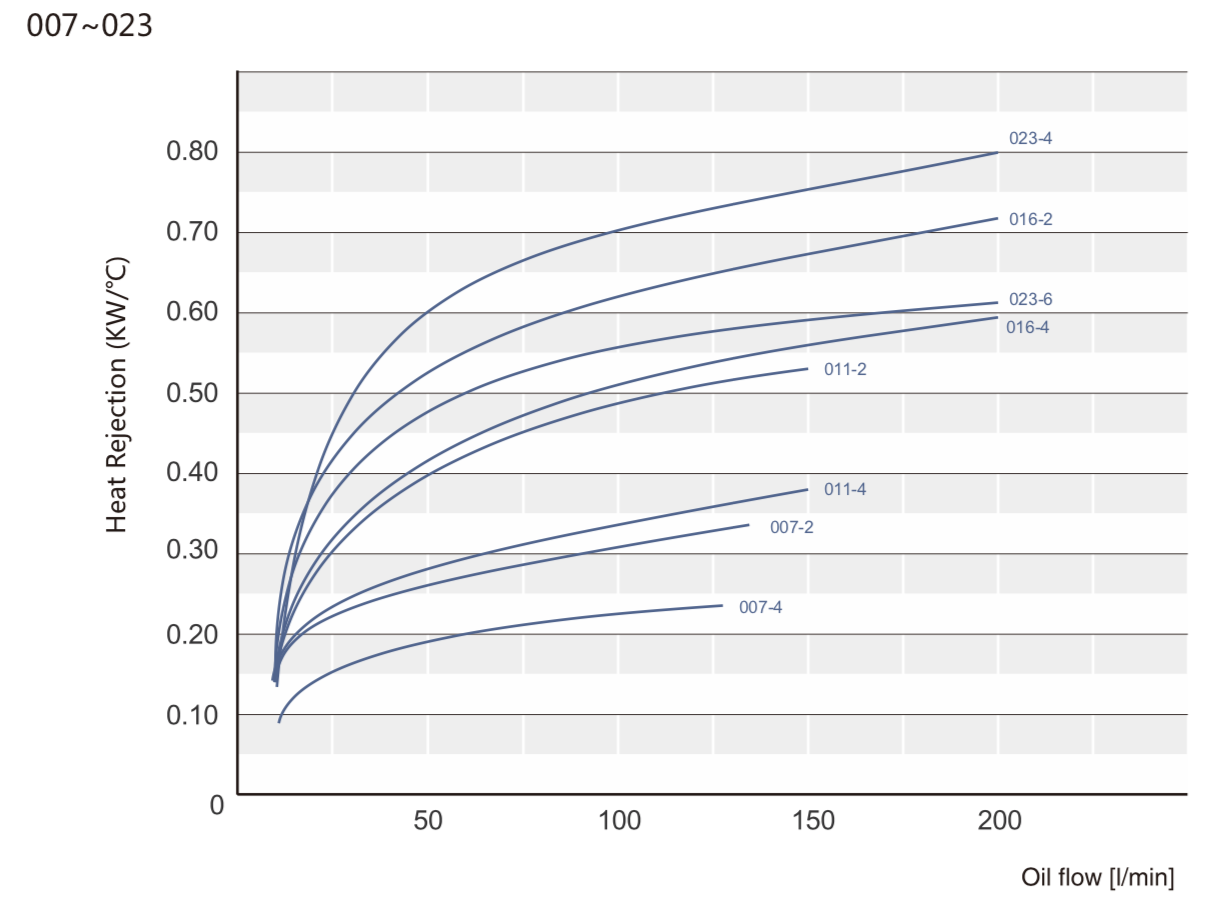

Heat Rejection Curve

High Efficiency Explosion-proof Hydraulic cooler for Marine Equipment Wind Power Generation and mining



High Efficiency Explosion-proof Hydraulic cooler for Marine Equipment Wind Power Generation and mining

Pressure Drop Curve



High Efficiency Explosion-proof Hydraulic cooler for Marine Equipment Wind Power Generation and mining



ADV Services
  • 3D model drawing available
  • Prototype testing and confirmation
  • Steel frame support, Front to Back type design and manufacturing
  • Easy mounting and maintain, Good anti-vibration
  • Stable Performance & Low Pressure Drop
  • Compact Design & Light Weight
  • Motor & Fan is Optional
  • 12 Month Global Warranty
  • OEM Production is Offered





Be free to contact us if you need any further information, thank you!
