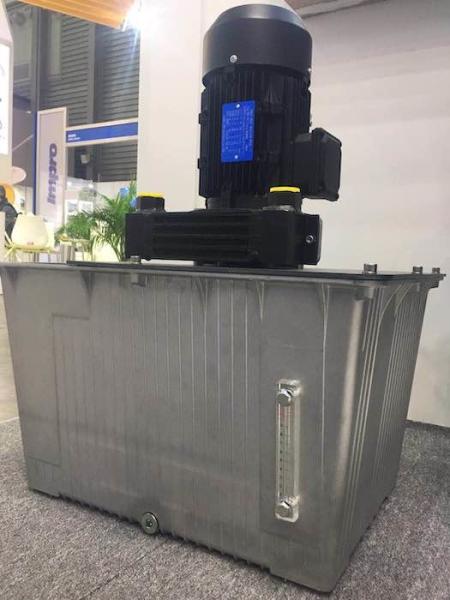

Hydraulic Aluminium Oil Tank

Brand Name : ADV

Model Number : ADV - HD -02

Certification : ISO9001

Place of Origin : Changzhou China

MOQ : 1 Unit

Supply Ability : 1~50 + Units + 25 Working Days

Delivery Time : 1~25 Working Days

Packaging Details : Wooden Packing

Product : Aluminum oil tank for hydraulic system

Material : AL3003

Technic : Vacuum Brazing

Max Size : 2.4 Meters Length

Max Pressure : 3.5 Mpa

Test : Leak Test & Performance Test & Pressure Pulse Test & Vibration Test

Usage : General hydraulic system, lubricationg system, gearbox

Contact Now

Aluminum Oil Tank Aluminum oil tank for hydraulic system

Features:

made of aluminium, no additional painting required
With oil collecting groove moulded on periphery for collection of leakage oil
Produced for no-pressure operation
Good heat loss capacity due to high caloric conductibility
All tanks are 100% tight and may be stacked without jamming
All tanks incl. plugs similar to DIN 908
Sealing for all tank sizes available from stock

Technical Data:

Max static pressure: 16Bar (Higher pressure can be customized)
Inlet Temp: 70 ℃ (bellow 130℃ can be customized)

Manufacturing

Hydraulic Aluminium Oil Tank

LAB & TEST

Leak Test of Every Unit Before Shipment
Performance Test
Pulse Test
Viberation Test
Salty Spay Test

ADV Services

3D model drawing available
Prototype testing and confirmation
Steel frame support, Front to Back type design and manufacturing
Easy mounting and maintain, Good anti-vibration
Stable Performance & Low Pressure Drop
Compact Design & Light Weight
Motor & Fan is Optional
12 Month Global Warranty
OEM Production is Offered

Purchasing Guide

You just need to tell us your specific requirements and environmental parameters so that we can make professional quotations accordingly.

Please advise:

Oil parameter	Fluid
	Flow
	Inlet temperature (℃)
	Cooling power (kw)
	Max. allowable pressure drop
	Max. work pressure (MPa)
Air parameter	Flow
	Inlet temperature (℃)
	Cooling power (kw)
	Max. allowable pressure drop
	Max. work pressure (MPa)
Cool air parameter	Flow & Pressure curve
	Inlet temperature (℃)
	Air trace
Mounting	Max overall dimension
	Location of connections
	Requirement of structure
Working condition

Be free to contact us if you need any further information, thank you!
