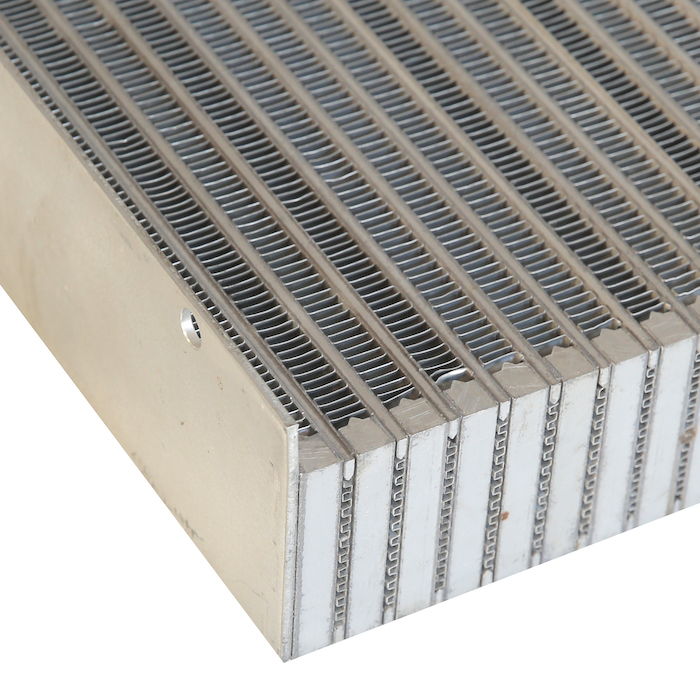

Aluminum bar and plate core for air to air heat exchanger

  • 1
  • 2

Brand Name : ADV

Model Number : ADV - BP-13

Certification : ISO9001

Place of Origin : Changzhou China

MOQ : 1 Unit

Supply Ability : 1~50 + Units + 25 Working Days

Delivery Time : 1~25 Working Days

Packaging Details : Wooden Packing

Name : Bar and plate core

Material : Aluminum AL3003

Construction : Bar and Plate Core /Plate Fin Core

Technic : Vacuum Brazing & TIG Welding

Custom : Inch Sizes, Performance,Working Pressure, Anti-corrosion, Coating

Usage : Construction Machinery, Hydraulic System, Compressor Machinery, Automatic , Agriculture Machinery, Railway, Wind Powder Generation

Test : Leak Test & Performance Test & Pressure Pulse Test & Vibration Test

Warranty : 12 Month

Contact Now

Aluminum bar and plate core for air to air heat exchanger​​

Description

The bar and plate core design consists of fins that are pressed together between aluminum plates and fitted with header and side bars. This stacking of bars, plates, and fins, is then brazed together, creating a single, solid piece allowing tanks to be welded directly on the core. This type of construction results in much stronger solution for the more demanding applications since it can withstand higher pressures and temperatures.
Currently our bar and plate cores are often widely used in performance racing, automotive after market service, like some heavy duty tack coolers and radiators, and demanding OEMs.


Aluminum bar and plate core for air to air heat exchanger



Assembled bar and plate cores



        Aluminum bar and plate core for air to air heat exchanger

Controlled atmosphere vacuum brazing



      Aluminum bar and plate core for air to air heat exchanger

Aluminum bar and plate core for air to air heat exchanger​

Bar and plate core Advantages


High specific cooling capacity

Low noise emission

Innovative cooling designs

Easy to clean / maintain

Weight optimized cooling systems

Proven durability

High reliability

Fast Delivery Time

Custom project engineering

Cost Economic​



Bar and Plate Core Customization
You just need to tell us your specific requirements and environmental parameters so that we can make professional quotations accordingly.



Oil ParameterFluid
Flow
Inlet temperature(℃)
Cooling power(kw)
Max. Allowable Pressure Drop
(MPa) Max. work pressure
Air ParameterFlow
Inlet temperature(℃)
Cooling power(kw)
Max. allowable pressure drop
(MPa) Max. work pressure
Cool Air ParameterFlow & pressure curve
Inlet temperature(℃)
Air Trace
MountingMax Overall Dimension
Location of Connections
Requirement of Structure
Working Condition




Aluminum bar and plate core for air to air heat exchanger


Be free to contact us if you need any further assistance , thank you!
